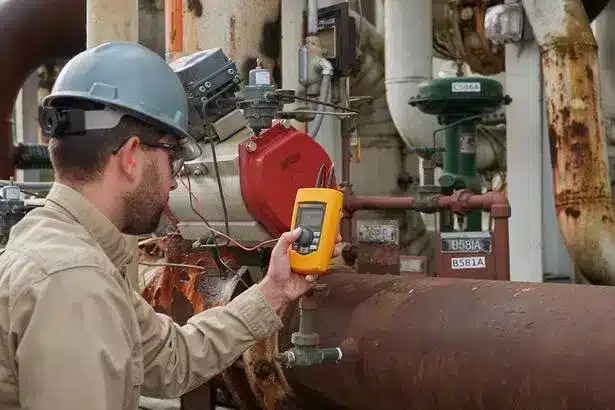

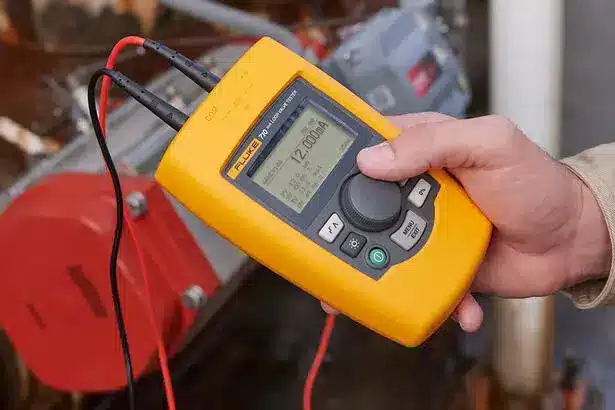

The Fluke 710 mA Loop Valve Tester is the next generation of Fluke calibration equipment, specifically designed for testing control valves and current loop transmitters.
This device utilizes intelligent Auto Test capabilities to provide precise performance evaluation of control valves and presents test results in numerical and graphical formats.
In addition to standard functions like source, simulate, and measure 4-20mA current, it features data storage and reporting capabilities.

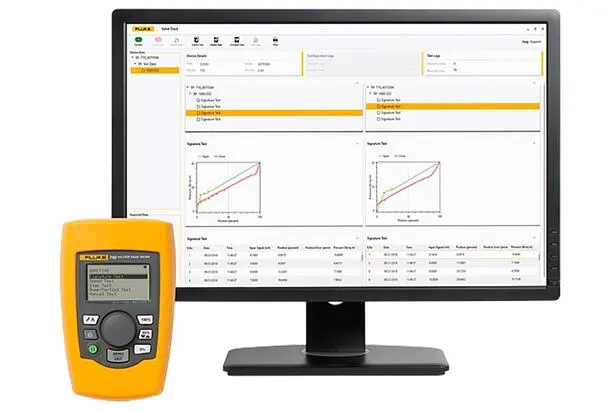

Its user interface is straightforward and fast, and data can be transferred to a computer via the Fluke Data Logging Software. With its robust industrial design, lightweight, and clear graphical interface, it is highly suitable for use in refineries, power plants, production lines, and precision instrument maintenance centers.
🔹 Key Features of Fluke 710
-
Automatic testing capability for control valves (Auto Test)
-
Measuring, simulating, and sourcing 4 to 20 mA current
-
Data logging and storage capability
-
High measurement accuracy of ±0.01% of reading
-
LCD display with graphical interface and backlight
-
Loop powering capability with 24V DC
-
Automatic test result analysis and comparison with reference values
-
Robust, portable design suitable for industrial environments
🔹 Technical Specifications of Fluke 710
| Feature | Value |
|---|---|
| Working current range | 0 to 24 mA |
| Measurement accuracy | ±0.01% of reading |
| Resolution | 0.001 mA |
| Operating modes | Source / Measure / Simulate / Auto Test |
| Data storage capability | Yes |
| Loop power supply | 24V DC internal |
| User interface | Digital rotary switch + graphical menu |
| Display | LCD with backlight |
| Computer communication | Via Fluke Data Logging software |
| Operating temperature | 0 to 50°C |
| Dimensions | 150 × 75 × 35 mm |
| Weight | Approximately 480 grams |
❓ Frequently Asked Questions (FAQ)
1. What is the difference between Fluke 710 and models 709 and 709H?
The Fluke 710 features automatic testing for control valves (Auto Test) and performance analysis, whereas the 709 and 709H models focus on current calibration.
2. Does Fluke 710 have the capability to store results?
Yes, test and calibration data are stored in the device's memory and can be transferred to a computer.
3. Does this device support the HART protocol?
No, the Fluke 710 does not have HART communication but is optimized for precise control valve testing.
4. Is Fluke 710 suitable for industrial environments?
Yes, this device, with its rugged design and industrial housing, is fully suitable for harsh and fluctuating environments.
🔚 Conclusion
The Fluke 710 loop calibrator is a smart and precise tool for testing the performance of control valves and 4-20 mA current loop calibration. With its automatic analysis capability, data logging, and industrial design, this device is an excellent choice for instrumentation engineers and industrial maintenance teams.
📎 Official Datasheet Link
👉 Download the datasheet Fluke 710 (PDF)
