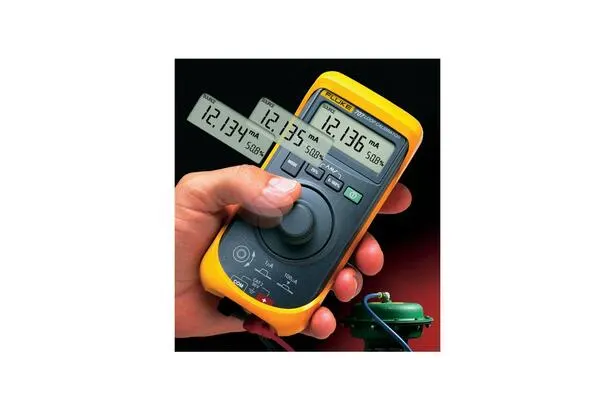

The Fluke 707 loop calibrator is a professional-grade product from Fluke that is used for setting up and checking control equipment based on current loops. This device can generate, simulate, and measure current from 4 to 20 mA, making it highly suitable for testing transmitters, controllers, and closed-loop systems.
One of the unique features of this model is the Quick Click Dial, which allows for quick and precise adjustments of the output current. The large display with a backlight ensures readability even in low-light environments.

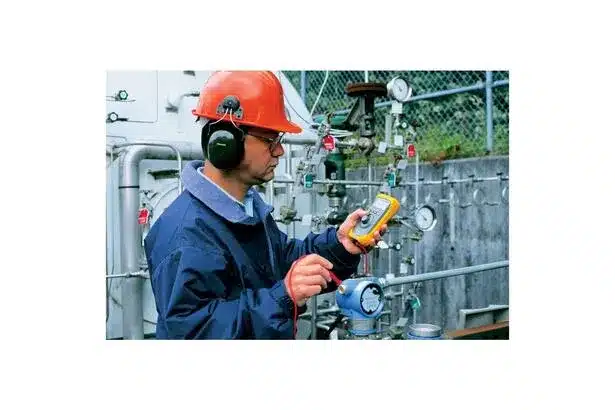

The robust design, simple usability, and extensive capabilities have made the Fluke 707 one of the most popular tools for calibration in the oil, gas, petrochemical, power generation, and industrial automation sectors.
🔹 Key Features of Fluke 707
-
Ability to measure and source current in the range of 0 to 24 mA
-
High accuracy up to ±0.015% of the reading
-
Ability to supply power for 24V DC loops
-
High-resolution display with backlight
-
Quick dial for precise output control
-
Robust and portable design for industrial environments
-
Battery-independent operation and compatibility with external power supply
🔹 Technical Specifications of Fluke 707
| Feature | Value |
|---|---|
| Output Current Range | 0 to 24 mA |
| Measurement Accuracy | ±0.015% of the reading |
| Resolution | 0.001 mA |
| Loop Power Supply | 24V DC |
| Maximum Loop Current | 24 mA |
| Display Type | LCD with backlight |
| Operating Temperature | 0 to 50°C |
| Weight | Approximately 400 grams |
| Dimensions | 70 × 150 × 30 mm |
❓ Frequently Asked Questions (FAQ)
1. Does the Fluke 707 have loop power supply capability?
Yes, this device can power loops with 24V DC.
2. What is the difference between Fluke 707 and model 715?
The Fluke 707 is specifically designed for calibrating 4-20 mA current loops, while model 715 is also applicable for voltage.
3. Can this device be used in harsh industrial environments?
Yes, its rugged design and impact-resistant case are suitable for industrial conditions.
4. Does the Fluke 707 require periodic calibration?
Yes, it is recommended to calibrate it annually to maintain measurement accuracy.
🔚 Conclusion
The Fluke 707 calibrator is an ideal choice for instrumentation engineers seeking high accuracy, ease of use, and industrial durability. With its fast operation and loop power supply capability, this device is among the best options for professional calibration in industrial settings.
📎 Official Datasheet Link
👉 Download the datasheet Fluke 707 (PDF)
