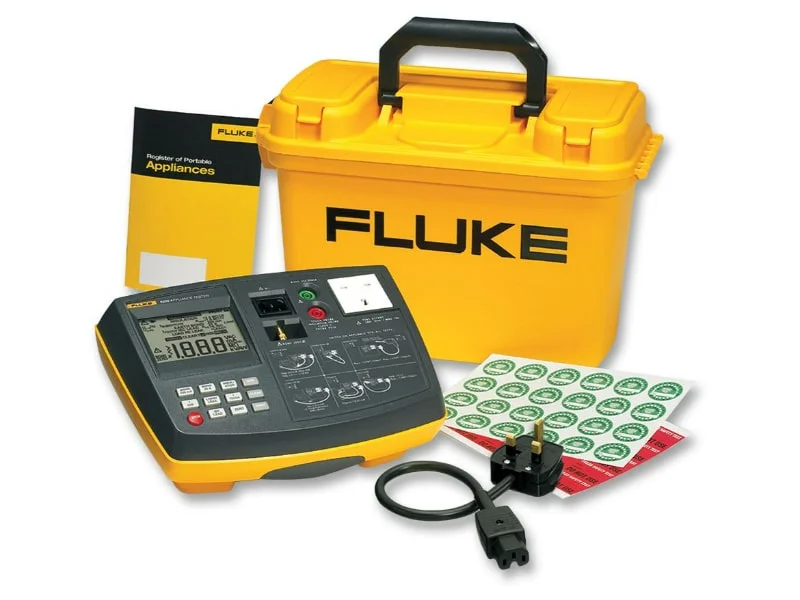

The Fluke 6500-2/UK tester is designed for electrical safety professionals, maintenance technicians, and service companies to enable comprehensive electrical safety testing of portable equipment in accordance with international standards.
This device is capable of performing essential tests including continuity testing, insulation resistance testing, leakage current testing, RCD performance testing, and polarity checking with high precision.

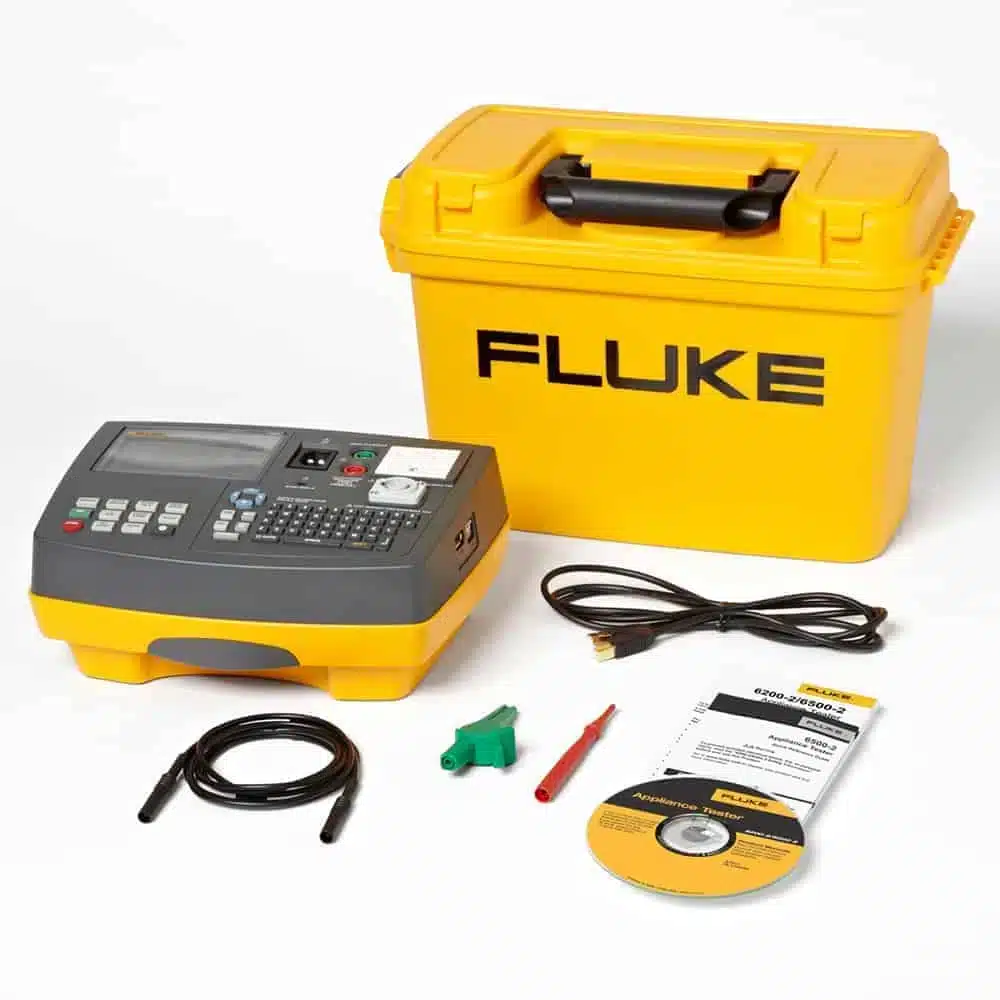

The /UK version is tailored for the UK market and comes with a complete set of connections, cables, and data management software.
Its ergonomic design, large display, and user-friendly interface make it ideal for industrial and service environments.
🔹 Key Features of Fluke 6500-2/UK
-
Fast and automatic safety testing based on BS EN50699 / IEC 62353 standards
-

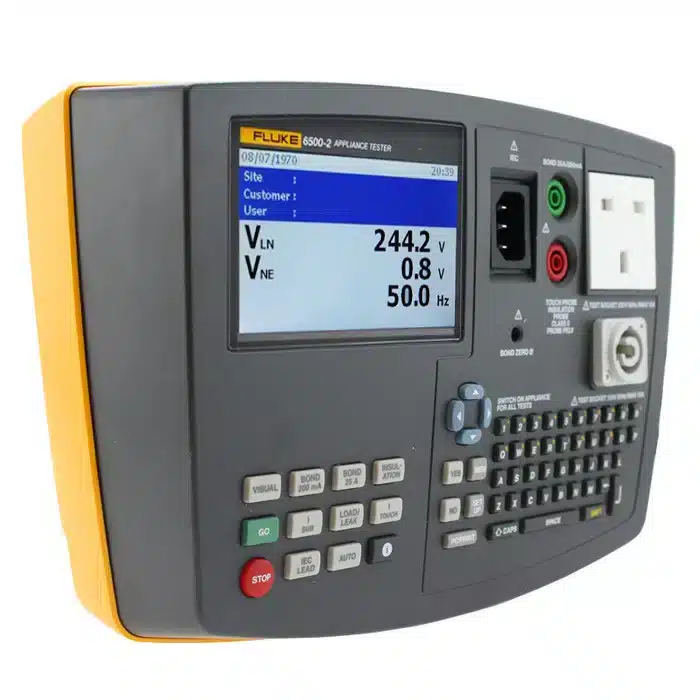

Large color display and menu-driven user interface
-
Storage of over 1000 test results in internal memory
-
Ability to connect to Fluke TruTest software for professional documentation and reporting
-
Capability to print results via a printer or transfer data via USB
-

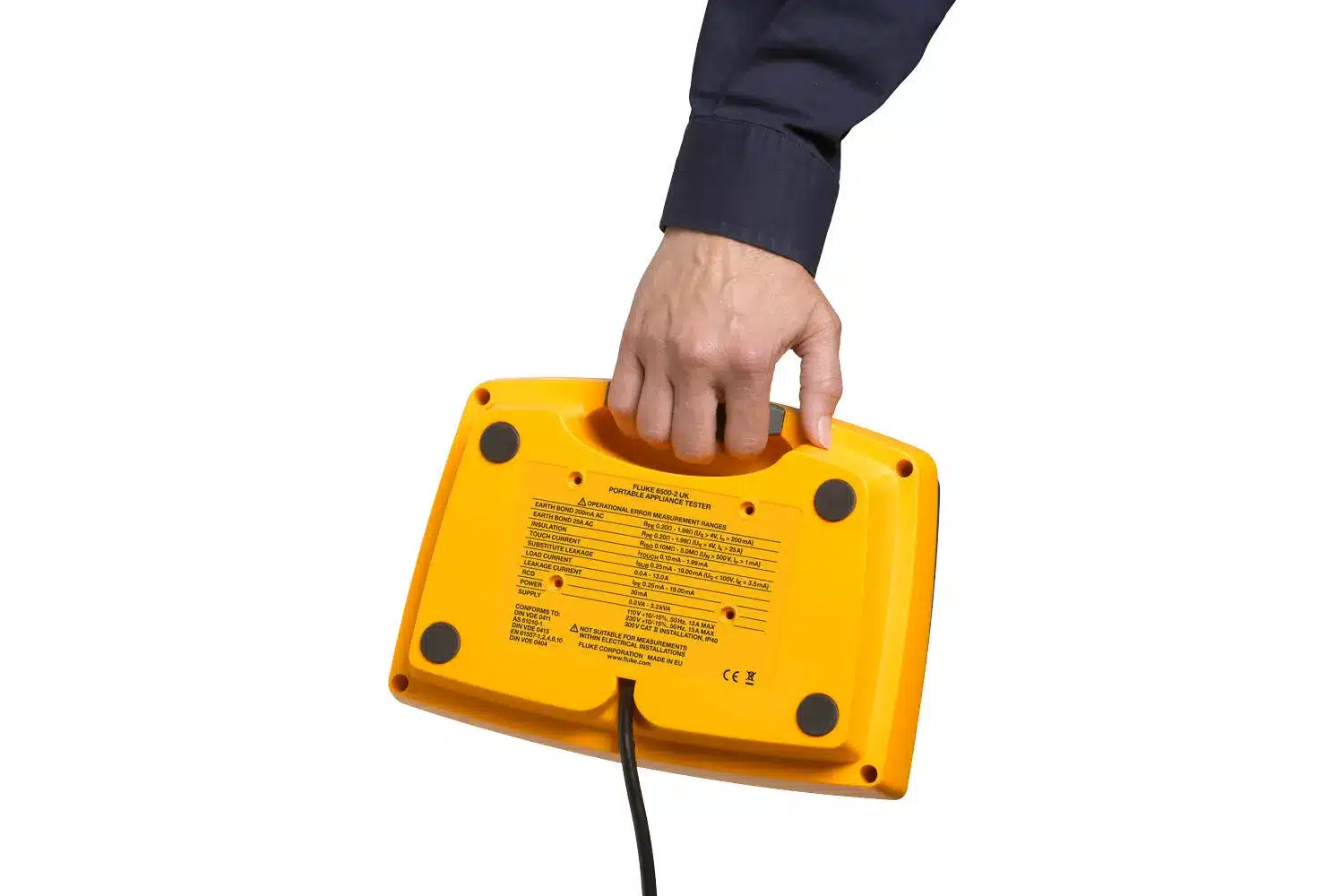

Rugged and portable design for industrial environments
-
Safe operation compliant with CAT II 300V
🔹 Technical Specifications of Fluke 6500-2/UK
| Feature | Value |
|---|---|
| Supply Voltage | 230V AC ±10% |
| Continuity Test Range | 0.03Ω to 19.99Ω |
| Insulation Test | 100V, 250V, 500V |
| Measurement Accuracy | ±(2% + 2 digits) |
| Test Current | 200 mA |
| Leakage Current Test | Up to 10 mA |
| Internal Memory Capacity | 1000 tests |
| Safety | CAT II 300V |
| Weight | 3.5 kg |
| Dimensions | 315 × 250 × 120 mm |
❓ Frequently Asked Questions (FAQ)
What is the difference between Fluke 6200-2 and Fluke 6500-2?
The 6500-2 features a color display, more memory, and compatibility with reporting software, while the 6200-2 is a simpler version.
Is the 6500-2/UK compatible with TruTest software?
Yes, it fully works with Fluke TruTest, and data can be reported digitally.
Is this device suitable for testing office and home equipment as well?
Yes, it can be configured for various testing modes for industrial, office, and even home tools.
Can a printer be connected to the device?
Yes, results can be printed directly or transferred via USB.
🔚 Conclusion
The portable appliance tester Fluke 6500-2/UK is a comprehensive and precise tool for ensuring the safety of electrical devices. With data storage capabilities, professional reporting, and a rugged design, this model is an excellent choice for electrical service companies, industrial facilities, and safety engineers.
📎 Official Datasheet Link
👉 Download the datasheet Fluke 6500-2 (PDF)
