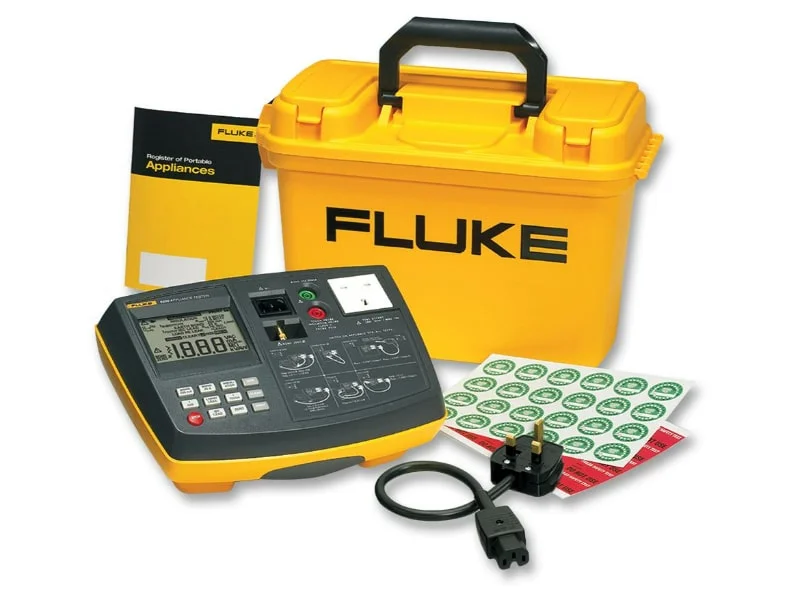

The Fluke 6200-2 tester is one of the most popular tools for testing the safety of portable electrical equipment, widely used in industrial environments, offices, workshops, and laboratories.
This device performs all standard PAT (Portable Appliance Testing) tests automatically or manually, displaying the results with high accuracy on its large and readable screen.
The lightweight and portable design, simple user interface, and high test execution speed have made the Fluke 6200-2 the first choice for technicians to check the electrical health of portable devices.
This device is designed to comply with international electrical safety standards, and its results are reliable for documentation and reporting.
🔹 Key Features of Fluke 6200-2
-
Complete PAT tests including: earth resistance, insulation, leakage current, and continuity testing
-
Simple user interface with large and clear physical buttons
-
Large digital display with high readability
-
Capability to perform automatic and manual tests
-
Lightweight, portable, and rugged design
-
Output for printer or data storage
-
Visual and audible alerts for test results (pass/fail)
-
Safety: CAT II 300V
🔹 Technical Specifications of Fluke 6200-2
| Feature | Value |
|---|---|
| Earth Resistance Measurement Range | 0.03 to 19.99 Ω |
| Insulation Resistance Range | Up to 50 MΩ at 500V DC |
| Insulation Test Voltage | 250V / 500V |
| Leakage Current Test | Up to 10 mA |
| Continuity Test | 200 mA DC |
| Display | Large LCD with backlight |
| Safety | CAT II 300V |
| Weight | Approximately 3.5 kg |
| Power Supply | 230V AC, 50/60Hz |
❓ Frequently Asked Questions (FAQ)
What is the difference between Fluke 6200-2 and Fluke 6500-2?
The 6200-2 model has simpler manual operation, while the 6500-2 model offers advanced data storage and digital reporting capabilities.
Is this device suitable for all portable devices?
Yes, it is suitable for all electrical devices with plugs or power cords.
Does it require special training?
No, it has a very simple user interface and clear instructions.
🔚 Conclusion
The Fluke 6200-2 tester is an ideal tool for fast and accurate safety testing of portable electrical equipment. Its rugged design, high precision, and ease of use make this device one of the best choices for electrical technicians and safety engineers.
📎 Official Datasheet Link
👉 Download the datasheet for Fluke 6200-2 (PDF)
