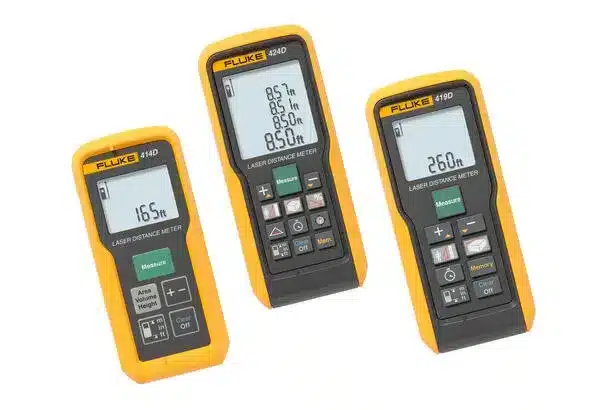

Fluke 424D is an advanced laser distance meter designed for measuring distances in industrial, construction, and maintenance environments. This device can measure up to 100 meters (330 feet) with an accuracy of ±1 millimeter.
The four-line display with backlight, a 180-degree tilt sensor, a compass, and advanced functionalities such as Pythagorean calculations and automatic end-point correction make this device an ideal tool for precise and quick measurements in challenging work environments.
🔹 Key Features of Fluke 424D
-
Measuring range up to 100 meters with an accuracy of ±1 millimeter
-
Four-line display with backlight for easy reading
-
180-degree tilt sensor for measuring in difficult spaces
-
Internal compass for direction measurement
-
Automatic end-point correction for accurate measurements from edges
-
Ability to store the last 20 measurements for quick access
-
Tripod connection capability for long-distance measurements
-
Advanced Pythagorean calculations for indirect measurements
-
Dust and splash resistant with IP54 protection rating
-
Long battery life with the capability of up to 5000 measurements using two AAA batteries
-
Compact and lightweight design for easy field use
🔹 Technical Specifications of Fluke 424D
| Feature | Value |
|---|---|
| Measurement Range | 0.2 to 100 meters |
| Measurement Accuracy | ±1 millimeter |
| Maximum Measurement Accuracy | ±2 millimeters |
| Device Size (HxWxD) | 12.7 × 5.6 × 3.3 cm |
| Weight with Battery | 158 grams |
| Protection Rating | IP54 |
| Drop Resistance | Tested to a height of about 1 meter |
| Battery Life | Up to about 5000 measurements with two AAA batteries |
| Operating Temperature Range | ‑10 °C to +50 °C |
| Laser | Class II, wavelength ≈ 635 nm, power < 1 mW |
❓ Frequently Asked Questions (FAQ)
Q: Is the Fluke 424D suitable for measuring the length of large spaces?
Yes, with a measuring capacity of up to 100 meters and an accuracy of ±1 millimeter, it is very suitable for industrial, construction, or facility applications.
Q: Is this device suitable for outdoor use?
Yes; the bright laser, backlit display, and IP54 protection rating make it suitable for outdoor or semi-open environments.
Q: How long does the battery last?
The device can make up to about 5000 measurements with two AAA batteries.
Q: Is the device drop-resistant or suitable for harsh environmental conditions?
Yes, this model is tested for drops from a height of about 1 meter and has an IP54 protection rating, making it suitable for industrial environments.
🔚 Conclusion
The Fluke 424D laser distance meter, combining high accuracy, advanced capabilities, and a rugged design, is an ideal tool for precise measurements in tough work environments. If you work on construction, facilities, or industrial projects and need a reliable and quick tool, this model is a smart choice.
