Fluke 417D is a professional laser distance meter designed for measuring distances in industrial, construction, and facilities environments. By pressing a single button, the user can quickly and accurately determine the distance to a target.
This device is capable of measuring up to approximately 40 meters and features a dual-line display with a backlight, making it easy to read values even in low-light conditions.
The rugged design of this device includes resistance to drops from a height of about one meter and has an IP54 protection rating, making it suitable for use in harsh industrial work environments.
A high battery life (capable of performing up to about 3000 measurements with AAA batteries) allows field operations with minimal downtime. The Fluke 417D is particularly useful for maintenance engineers, facilities technicians, and building inspectors who need precise, quick, and reliable measurements.
🔹 Key Features of Fluke 417D
-
Measurement range of up to approximately 40 meters with an accuracy of ±2 millimeters
-
One-button operation and simple user interface; fast and direct measurement
-

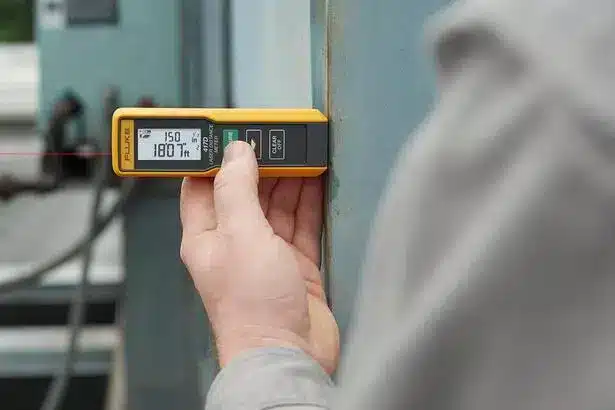

Dual-line display with backlight for easy reading even in low-light environments
-
Bright laser for precise targeting even at long distances
-
Continuous measurement capability for quicker adjustments
-
Drop resistant from a height of about 1 meter and with an IP54 protection rating
-
High battery life — up to about 3000 measurements with two AAA batteries
-

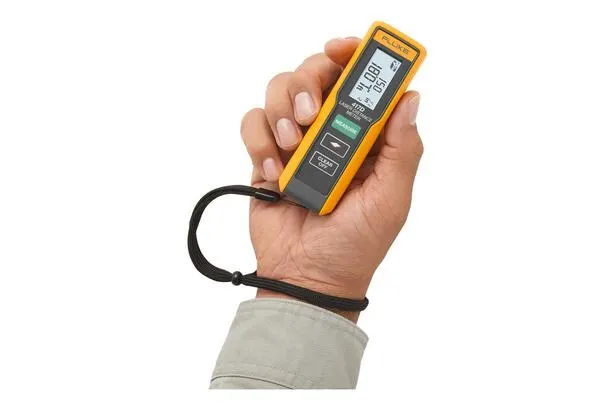

Compact and portable design; lightweight for easy field use
🔹 Technical Specifications of Fluke 417D
| Feature | Value |
|---|---|
| Measurement Range | 0.2 to 40 meters |
| Measurement Accuracy | ±2 millimeters |
| Maximum Measurement Accuracy | ±3 millimeters |
| Device Dimensions (HxWxD) | 11.9 × 3.8 × 2.6 cm |
| Weight with Battery | Approximately 95 grams |
| Protection Rating | IP54 |
| Drop Resistance | Up to a height of about 1 meter |
| Battery Life | Up to about 3000 measurements with two AAA batteries |
| Operating Temperature Range | ‑10 °C to +50 °C |
| Laser | Class II, wavelength ≈ 635 nm, power < 1 mW |
❓ Frequently Asked Questions (FAQ)
Q: Is the Fluke 417D suitable for measuring the length of large spaces?
Yes, with a measurement capacity of up to approximately 40 meters and an accuracy of ±2 millimeters, it is very suitable for industrial, construction, or facilities applications.
Q: Is this device suitable for outdoor use?
Yes; its bright laser, backlit display, and IP54 protection rating make it suitable for outdoor or semi-open environments.
Q: How long does the device’s battery last?
The device can perform up to about 3000 measurements with two AAA batteries.
Q: Is the device drop resistant or suited for harsh environmental conditions?
Yes, this model has been tested for drops from a height of about 1 meter and has an IP54 protection rating, making it suitable for industrial environments.
🔚 Conclusion
The Fluke 417D laser distance meter combines high accuracy, ease of use, environmental resistance, and portability for industrial users.
If you are working in a factory, facility, construction project, or plumbing system and need a reliable, fast, and tough measuring tool, this model is a logical and smart choice.
📎 Official Datasheet Link
👉 Download the datasheet Fluke 417D (PDF)
