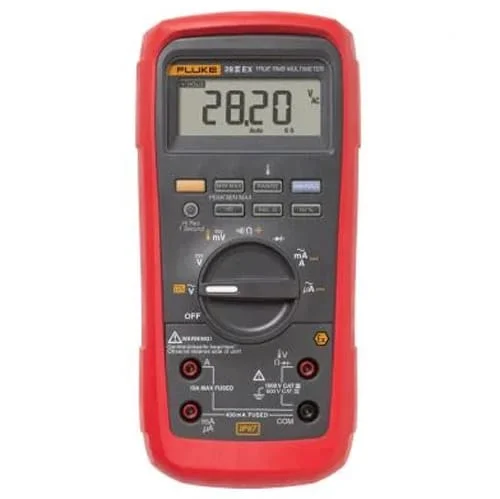

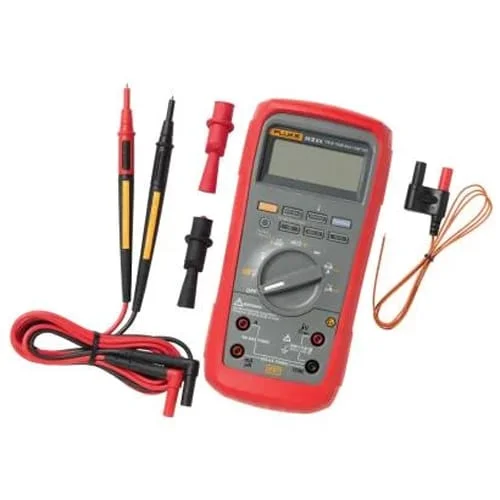

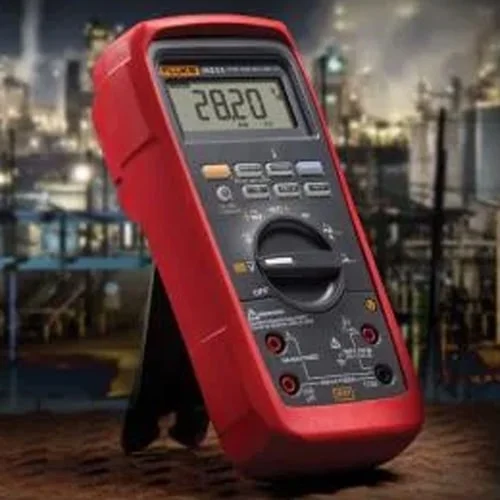

Fluke model 28 II Ex integrates True RMS measurement technology, complete protection against shock, dust, and water (IP67), as well as international safety certifications such as ATEX, IECEx, and INMETRO.
This multimeter is designed for use in Zone 1 and Zone 2 (gas) and Zone 21 and Zone 22 (dust) areas without causing sparks or dangerous heat generation.
The Fluke 28 II Ex, in addition to measuring voltage and current up to 1000V, has diode test, frequency, capacitance, resistance, and temperature measurement capabilities. Its rugged body is guaranteed to withstand falls from 3 meters and harsh environmental conditions.
🔹 Key Features of Fluke Model 28 II Ex
-
Ex certifications including ATEX, IECEx, INMETRO
-
Suitable for use in Zone 1, 2, 21, and 22 areas
-
Durable body resistant to falls from a height of 3 meters
-
IP67 protection rating – waterproof, dustproof
-
True RMS measurement
-
Temperature measurement with type K thermocouple
-
Min/Max/Average functionality
-
6000 Count display with backlight
-
Safety: CAT IV 600V / CAT III 1000V
-
Compliant with global industrial and safety standards
🔹 Technical Specifications of Fluke Model 28 II Ex
| Feature | Value |
|---|---|
| AC/DC Voltage | Up to 1000 Volts |
| AC/DC Current | Up to 10 Amperes |
| Resistance | Up to 50 Megaohms |
| Capacitance | Up to 10,000 µF |
| Frequency | Up to 200 kHz |
| Temperature | -200 to +1090 Degrees Celsius |
| Protection Rating | IP67 |
| Certifications | ATEX, IECEx, INMETRO |
| Weight | About 600 grams |
| Manufactured In | USA |
