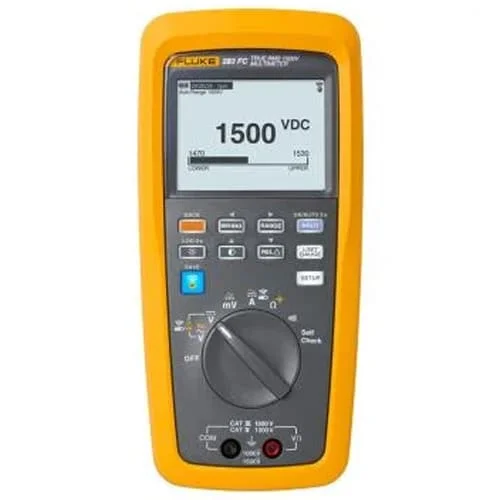

Fluke model 283 FC is an advanced multimeter for electrical engineers and industrial maintenance technicians who require high precision and long-term data logging.
This device features internal memory for logging over 20,000 data points and TrendCapture capability, enabling graphical analysis of voltage, current, and other parameters.
The connection to the Fluke Connect app allows for remote viewing and sharing of data and reports. This device offers high safety ratings (CAT IV 600V / CAT III 1000V), industrial ruggedness, and a large graphical display with a backlight.
🔹 Key Features of Fluke Model 283 FC
-
Automatic data logging with TrendCapture for trend analysis
-
True-RMS for high accuracy in non-sinusoidal signals
-
Wireless connectivity via Fluke Connect for data viewing and sharing
-
High-capacity internal memory for long-term logging
-
Large display with advanced graphical interface
-
Capable of measuring voltage, current, frequency, resistance, temperature, diode, and capacitance
-
Suitable for predictive maintenance and professional inspection
🔹 Technical Specifications of Fluke Model 283 FC
| Feature | Value |
|---|---|
| AC/DC Voltage | Up to 1000V |
| Current | Up to 10A |
| Temperature | With side probe |
| Frequency | Up to 1 MHz |
| Capacitance | Up to 100 mF |
| Data Logging Memory | Up to 20,000 points |
| Wireless Communication | Fluke Connect (Bluetooth) |
| Safety | CAT IV 600V / CAT III 1000V |
| True RMS | Yes |
| TrendCapture | Yes |
