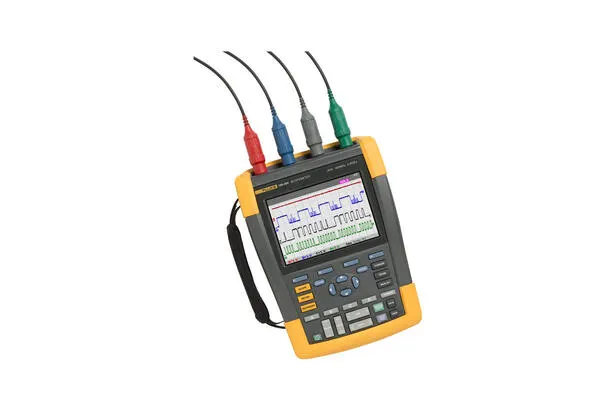

The Fluke 190-102-III model from the ScopeMeter 190 III series is a combination of an oscilloscope, digital multimeter, and signal recorder. This device, with a bandwidth of 100 MHz, enables the detection of complex signals, harmonics, noise, and transient fluctuations.
In this model, the inputs are designed to be fully isolated, allowing measurements in various circuits with different voltage levels without grounding.
This device supports key features such as Connect-and-View™ triggering for automatic startup, TrendPlot for long-term data logging, and ScopeRecord for capturing transient events.
By integrating oscilloscope features with an internal True RMS multimeter, technicians can analyze signals and measure essential data without changing tools.
🔹 Key Features of Fluke 190-102-III
-
Dual analog channels with 100 MHz bandwidth
-
Sampling rate up to 1.25 GS/s
-
Digital multimeter with 5000 internal counts capable of measuring voltage, resistance, diode, etc.
-
Isolated inputs with CAT III 1000V / CAT IV 600V safety
-
Technology Connect-and-View™ for automatic oscilloscope setup
-
Long-term recording capability with TrendPlot and event recording with ScopeRecord
-

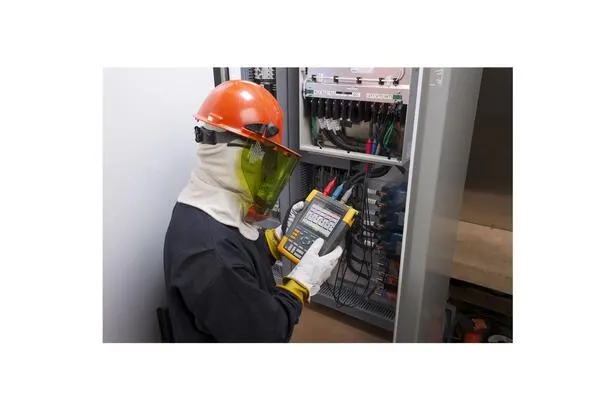

Robust body designed for industrial environments (IP51 / resistance against dust and moisture)
🔹 Technical Specifications of Fluke 190-102-III
| Feature | Value |
|---|---|
| Bandwidth | 100 MHz |
| Real Sampling Rate | 1.25 GS/s |
| Number of Channels | 2 Analog Channels + Internal Multimeter |
| Input Sensitivity | 2 mV to 100 V/div in direct mode |
| Safety | CAT III 1000V / CAT IV 600V |
| Internal Wave Memory | 10,000 points per channel |
| Data Recording | TrendPlot (days) and ScopeRecord |
| Display | Bright color LCD suitable for fieldwork |
| Dimensions and Weight | Hand-held model, robust design with industrial housing |
❓ Frequently Asked Questions (FAQ)
Is the 190-102-III suitable for use in an industrial environment?
Yes, the rugged body, high safety, and fieldwork design make it a reliable option.
How does the oscilloscope automatically set itself up?
With the Connect-and-View™ technology that detects signals and applies appropriate settings.
How long can data be recorded?
Data can be recorded for several days with TrendPlot, and transient events are captured with ScopeRecord.
Do I need any additional tools to measure voltage and resistance?
No, the internal multimeter of the device provides this functionality.
🔚 Conclusion
The Fluke 190-102-III is a powerful option for engineers and technicians who require a handheld oscilloscope, multimeter, and high-precision signal recorder. With a combination of industrial features, safety, and advanced capabilities, this device is highly effective for advanced electrical and electronic troubleshooting.
