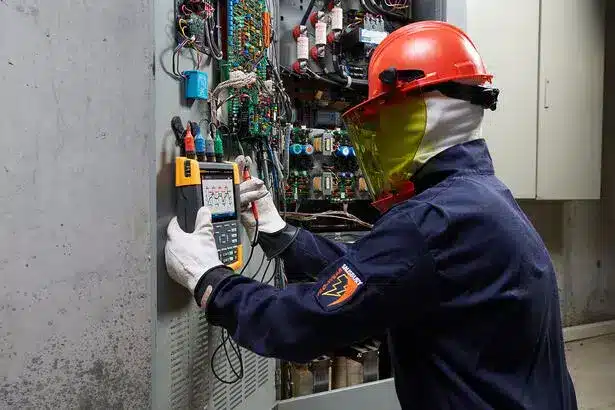

The Fluke 190-102-III-S industrial oscilloscope from the ScopeMeter 190 III series combines an oscilloscope, multimeter, and data recorder with a focus on industrial applications. The 'S' version indicates the inclusion of the SCC kit, which provides greater connectivity and flexibility.
In this model, the sampling rate reaches up to 5 GS/s (in specific configurations), and a deep memory of 10,000 samples allows the user to accurately capture complex signals and transient events.
The device safety rating is at CAT III 1000V / CAT IV 600V with isolated inputs.
The included connection kit comprises cables, probes, a WIFI dongle, a carrying case, and FlukeView software.
🔹 Key Features of Fluke 190-102-III-S
-
Two-channel 100 MHz oscilloscope
-
Comes with SCC kit for complete connectivity
-
Sampling rate up to 5 GS/s
-
Deep memory of 10,000 samples
-
Safety CAT III 1000V / CAT IV 600V
-
Isolated and floating inputs
-
TrendPlot and ScopeRecord functions
-
Data transfer capability via USB or Wi-Fi
🔹 Technical Specifications of Fluke 190-102-III-S
| Feature | Value |
|---|---|
| Bandwidth | 100 MHz |
| Sampling Rate | Up to 5 GS/s (specific model) |
| Sample Memory | 10,000 points per channel |
| Safety | CAT III 1000V / CAT IV 600V |
| Input Isolation Voltage | Independent and isolated input highways |
| Power Supply | Rechargeable Li-Ion battery (BP290) |
| Battery Life | Up to ~3.5 hours at low brightness |
| Weight | Approximately 2.1 kg |
❓ Frequently Asked Questions (FAQ)
What is the difference between the S model and the base model?
The 'S' version comes with the SCC kit for full connectivity, which is not available in the base version.
Is the actual sampling rate really 5 GS/s?
Yes, under specific conditions and model configuration, it is capable of sampling at this rate.
How is the automatic setup of the oscilloscope done?
With Connect-and-View™ technology, the device automatically selects the appropriate scale and trigger.
How long can data be recorded?
With the TrendPlot mode, long-term data can be recorded and transient events can be captured with ScopeRecord.
🔚 Conclusion
If you need a powerful tool with high performance, complete connectivity, and high safety for industrial projects, Fluke 190-102-III-S is one of the best options. This model combines an oscilloscope and SCC connection kit, providing complete capabilities for signal analysis.
