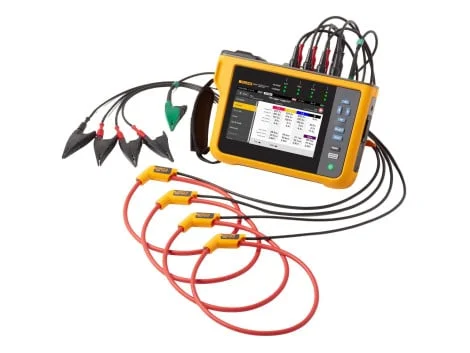

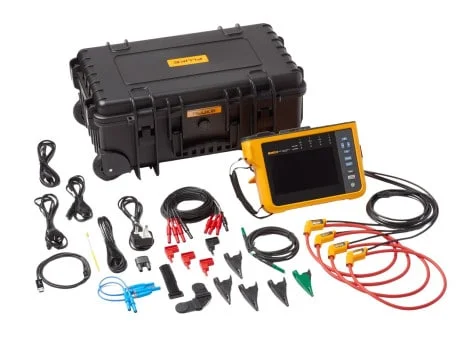

The Fluke power quality analyzer model Fluke 1777 is a new generation of professional energy measurement and power quality analysis devices. This device is designed to identify and record voltage fluctuations, voltage sags, harmonic distortion, and power imbalance in electrical systems.
The Fluke 1777, with its high measurement accuracy, a 7-inch color touchscreen display, and the capability to automatically log over 500 parameters, is a complete tool for electrical engineers and industrial operations technicians.
Other features of this model include the ability to measure real, reactive, and apparent power, record transient events, and connect directly to Fluke Energy Analyze Plus software. Its robust design, simple user interface, and high safety make it an ideal choice for industrial applications and energy production facilities.
🔹 Key Features of Fluke 1777
-
Accurate measurement of three-phase power, energy, current, and voltage
-
Analysis and recording of harmonics up to the 50th order
-
Automatic logging and storage of over 500 parameters
-

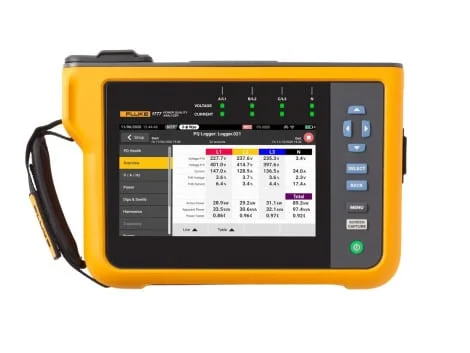

7-inch color touchscreen display with an easy-to-use interface
-
Direct connection capability to Fluke Energy Analyze Plus software
-
Isolated inputs for enhanced safety in industrial environments
-
Portable and rugged design with an industrial body
🔹 Technical Specifications (Fluke 1777)
| Feature | Value |
|---|---|
| Input Voltage Range | Up to 1000 Volts RMS |
| Input Current Range | Up to 6000 Amps depending on probe type |
| Power Measurement Accuracy | ±0.1% |
| Sampling Rate | 1 MHz |
| Display | 7-inch color touchscreen |
| Data Storage | Internal memory and USB port |
| Supporting Software | Fluke Energy Analyze Plus |
| Weight | 2.2 kg |
❓ Frequently Asked Questions (FAQ)
Question 1: Is the Fluke 1777 suitable for measurements in industrial three-phase systems?
✅ Yes, this model is suitable for both single-phase and three-phase systems and performs accurately in industrial environments.
Question 2: Does the device have the capability to measure transients?
✅ Yes, the Fluke 1777 can record and analyze transient voltage and current events.
Question 3: What is the difference between Fluke 1777 and Fluke 1775?
✅ The 1777 model has a wider measurement range, higher accuracy, and a faster sampling rate.
Question 4: Does the device require specific software?
✅ Yes, it supports the proprietary Fluke Energy Analyze Plus software for data analysis.
🔚 Conclusion
The Fluke 1777, with its combination of high accuracy, advanced analytical capabilities, and simple user interface, is one of the best options for power quality analysis in the electrical, energy, and automotive industries. This device is considered an ideal choice for engineering companies and industrial maintenance units.
