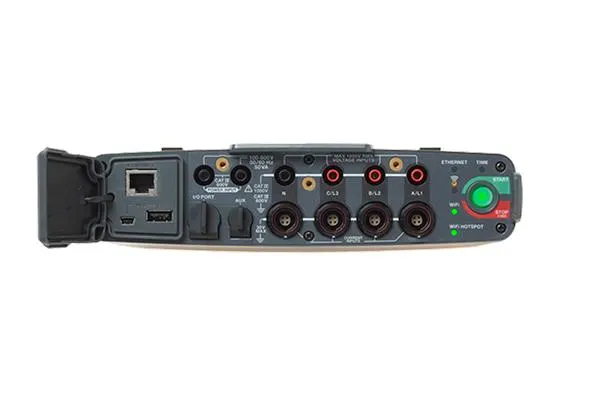

The Fluke 1742/15/INTL power quality tester is an advanced and portable device designed for accurately measuring and analyzing electrical parameters in three-phase systems.
This model is particularly suitable for technicians and engineers who require tools for troubleshooting, energy consumption analysis, and monitoring power distribution systems.
🔧 Technical Specifications of Fluke 1742/15/INTL
-
Input Voltage: Up to 1000 Volts RMS (CAT III 1000 V / CAT IV 600 V)
-
Input Current: Using flexible i17xx-FLEX probes (up to 1500 Amperes)
-
Applications: Measuring voltage, current, power, power factor, frequency, energy (forward/backward), peak demand, THD, flicker
-
Measurement Accuracy: ±(1% + 0.02%) for current
-
Data Storage: Ability to store over 20 separate measurement sessions
-
Communication Interfaces: Ethernet, USB (mini B), Wi-Fi for data download
-
Compliance Standards: In accordance with IEC 61000-4-30 Class A Edition 3
-
Additional Features: Automatic connection simulation capability, connection status display with indicator light, robust design with IP65 protection rating
📦 Included Items of Fluke 1742/15/INTL
-
Fluke 1742 power quality tester
-
4 flexible i17xx-FLEX probes with 1500 Amp capacity
-
MA-C8 power adapter
-
USB cable
-
Voltage test cables (three-phase + N)
-
Crocodile clips (2 blue and 4 black)
-
Soft carrying case
-
Power adapter for wall socket connection
-
Test cables (various models)
🖥️ Energy Analyze Plus Software
This device is provided with Energy Analyze Plus software, which allows users to analyze collected data and prepare standard reports such as EN 50160, IEEE 519, and GOST 33073. This software is compatible with PQDIF or NeQual formats and can also work with third-party software.
✅ Advantages
-
High Portability: Compact and rugged design with IP65 protection rating, suitable for industrial environments
-
High Accuracy: Compliance with international standards for power quality measurement
-
Flexibility in Measurement: Ability to measure voltage and current simultaneously in three-phase and neutral
-
Diverse Communication Interfaces: Connection via Ethernet, USB, and Wi-Fi for easy access to data
-
Advanced Software: Data analysis and standard report generation capabilities
📎 Official Datasheet Link
👉 Download Datasheet Fluke 1742/15/INTL (PDF)
