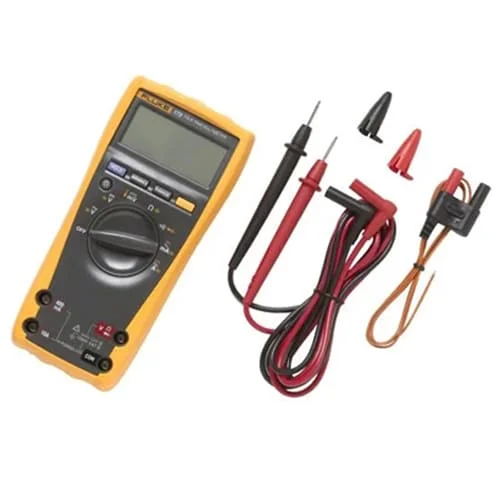

The Fluke Model 177 from the popular 170 series by Fluke offers a combination of quality, durability, and precision.
This True RMS multimeter can measure voltage, current, resistance, capacitance, frequency, diode testing, and continuity.
The Fluke 177 features a backlit display, providing easy reading of data in low light conditions, compared to the model 175.
The True RMS technology guarantees accurate performance on noisy or non-standard AC signals.
This device has high safety ratings of CAT III 1000V and CAT IV 600V, making it a reliable choice for use in industrial settings, repairs, laboratories, and educational purposes.
Its rugged design, user-friendly interface, and excellent build quality make the Fluke 177 a professional tool.
🔹 Key Features of Fluke Model 177
-
True RMS for precise measurement of AC signals
-
AC/DC voltage up to 1000 volts
-
AC/DC current up to 10 amps
-
Diode test, continuity buzzer, resistance, capacitance, and frequency measurements
-
6000 Count digital display with backlight
-
Min/Max/Average performance
-
Data Hold function to freeze readings on the display
-
Long-lasting 9-volt battery
-
Safety rating CAT III 1000V / CAT IV 600V
-
Made in the USA with high standards
🔹 Technical Specifications of Fluke Model 177
| Feature | Value |
|---|---|
| AC/DC Voltage | Up to 1000 volts |
| AC/DC Current | Up to 10 amps |
| Resistance | Up to 50 megaohms |
| Capacitance | Up to 10,000 microfarads |
| Frequency | Up to 100 kilohertz |
| Display | 6000 Count + backlight |
| True RMS | Yes |
| Min/Max/Average | Yes |
| Diode Test / Continuity Buzzer | Yes |
| Safety | CAT III 1000V / CAT IV 600V |
| Dimensions | 43x90x185 mm |
| Weight | Approximately 420 grams |
