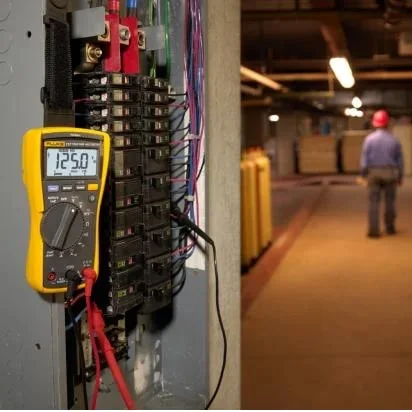

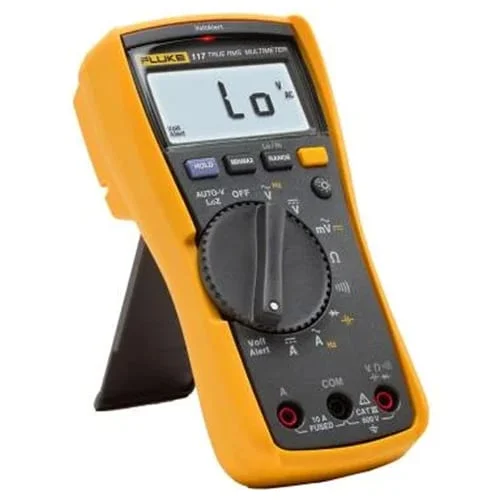

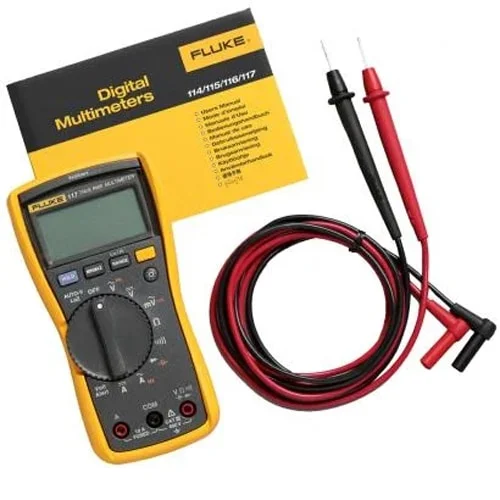

Fluke Model 117 is one of the most advanced handheld multimeters from Fluke, designed for technicians working in busy environments needing quick and accurate testing.
This model features True RMS technology for high accuracy in measuring AC voltage and current, as well as the LoZ (low input voltage) capability to eliminate phantom voltages.
With the AutoVolt feature, the device automatically detects between AC or DC voltage, eliminating the need for manual selection.
Diode test, continuity test, resistance measurement, frequency, capacitance, current measurement up to 10 amps, and a backlit display for the 6000-count capability have made the Fluke 117 a powerful tool for electricians and professional technicians.
The rugged body, ergonomic design, holding stand, and easy access to functions are among the reasons that have made the Fluke 117 one of the most popular models.
🔹 Key Features of the Fluke Model 117
-
AC/DC voltage measurement up to 600 volts
-
Current measurement up to 10 amps
-
True RMS for accurate non-sinusoidal AC measurements
-
AutoVolt and LoZ for automatic voltage detection and phantom voltage elimination
-
Diode test, continuity test, resistance, capacitance, frequency
-
6000 count digital display with backlight
- Data hold and Min/Max functions
-
Ergonomic design for comfortable one-handed use
-
Safety rating CAT III 600V
🔹 Technical Specifications of the Fluke Model 117
| Feature | Value |
|---|---|
| AC/DC Voltage | Up to 600V |
| Current | Up to 10A |
| Resistance | Up to 40 MΩ |
| Capacitance | Up to 10,000 µF |
| Frequency | Up to 50 kHz |
| True RMS | Yes |
| LoZ / AutoVolt | Yes |
| Diode / Continuity Test | Yes |
| Display | 6000 Count with backlight |
| Power Supply | 9V Battery |
| Dimensions | 167×84×46 mm |
| Weight | 550 grams |
| Safety Rating | CAT III 600V |
