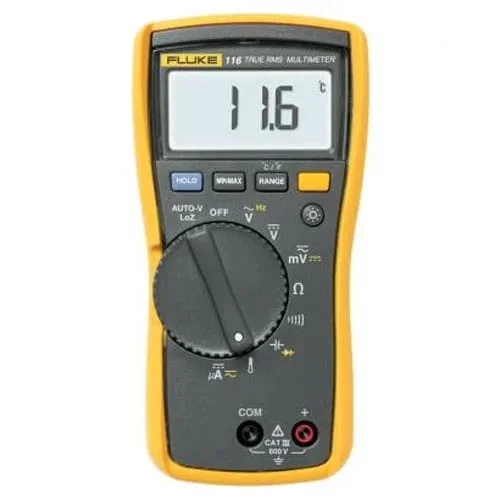

Fluke Model 116 is a multifunctional digital multimeter specifically designed for HVAC technicians and professional repairers.
This device, supporting microamp measurement for flame testing in burners and internal temperature measurement, is an unrivaled choice for air conditioning, heating, and cooling systems.
The robust body design, backlight for the digital display, and high measurement accuracy make the use of the Fluke 116 very convenient in dark or industrial environments.
The LoZ AutoVolt feature automatically identifies the type of voltage and prevents phantom voltages.
The Fluke 116 also offers diode testing, continuity checking with a buzzer, capacitance, and Data Hold functions. All these features are available in a compact and portable design.
🔹 Key Features of Fluke Model 116
-
AC/DC voltage measurement up to 600 volts
-
Microamp (μA) current measurement specifically for flame testing
-
Temperature measurement up to 400 degrees Celsius
-
LoZ function to eliminate ghost voltage
-
AutoVolt for automatic AC or DC identification
-
Diode test, continuity, resistance, and capacitance functions
-
6000 Count digital display with backlight
-
Compact, rugged design suitable for industrial environments
-
Safety class: CAT III 600V
🔹 Technical Specifications of Fluke 116
| Feature | Value |
|---|---|
| AC/DC Voltage | Up to 600V |
| μA Current | 0 to 600 microamps |
| Temperature | -40 to +400 °C |
| Resistance | Up to 40 MΩ |
| Capacitance | Up to 10,000 µF |
| Diode / Continuity Testing | Yes |
| LoZ / AutoVolt | Yes |
| Display | 6000 Count, backlight |
| Battery | 9 Volt |
| Weight | 550 grams |
| Dimensions | 167×84×46 millimeters |
| Safety Rating | CAT III 600V |
