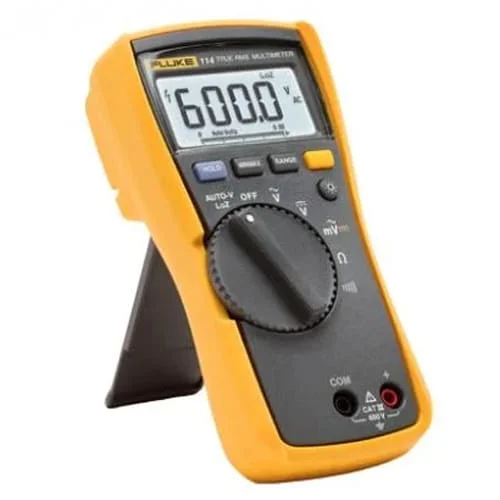

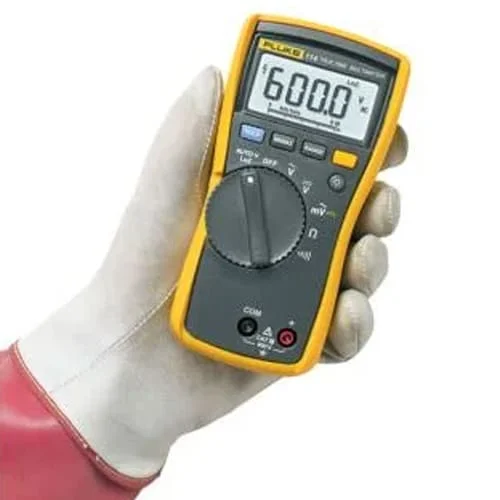

The Fluke 114 digital multimeter is designed to enable technicians and professional users to inspect and diagnose circuit issues as quickly as possible.
This model is specifically tailored for measuring electrical voltage, testing connectivity, and continuity in industrial and construction environments.
The Fluke 114 features VCHEK™ LoZ, which automatically distinguishes between actual voltage and circuit resistance to reduce erroneous results caused by ghost voltage.
With a large display, backlight, and data hold functionality, it provides an exceptional user experience in low-light conditions.
The CAT III 600V safety standard ensures that the device can be used safely in high-risk environments.
🔹 Key Features of Fluke 114
-
AC/DC voltage measurement up to 600 volts
-
VCHEK™ LoZ functionality for distinguishing actual voltage from resistance
-
Continuity and diode testing
-
Large display with backlight
-
Data hold button
-
Rubberized body for enhanced durability
-
AutoVolt test for automatic voltage type detection
-
Safety class: CAT III 600V
🔹 Technical Specifications of Fluke 114
| Feature | Value |
|---|---|
| AC/DC Voltage | Up to 600V |
| Resistance | Up to 60 kΩ |
| Diode Test | Yes |
| Continuity Test | Yes (with beeper) |
| LoZ VCHEK Functionality | Yes |
| AutoVolt | Yes |
| Display | 6000 Count with backlight |
| Battery | 9 volts |
| Weight | 550 grams |
| Dimensions | 167×84×46 millimeters |
| Safety Rating | CAT III 600V |
