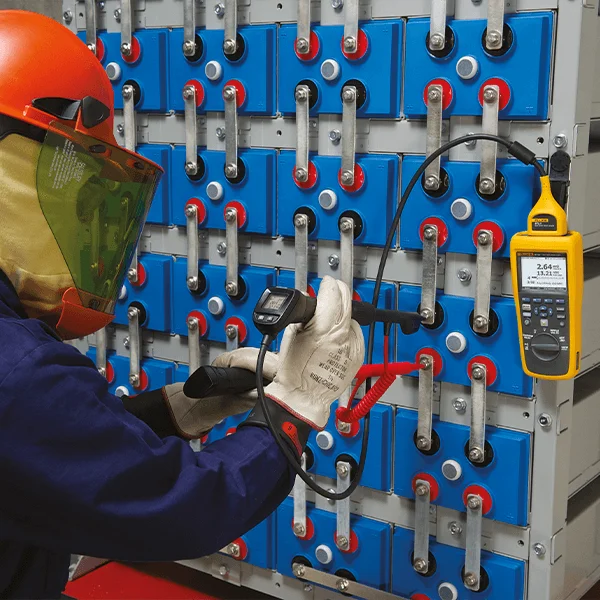

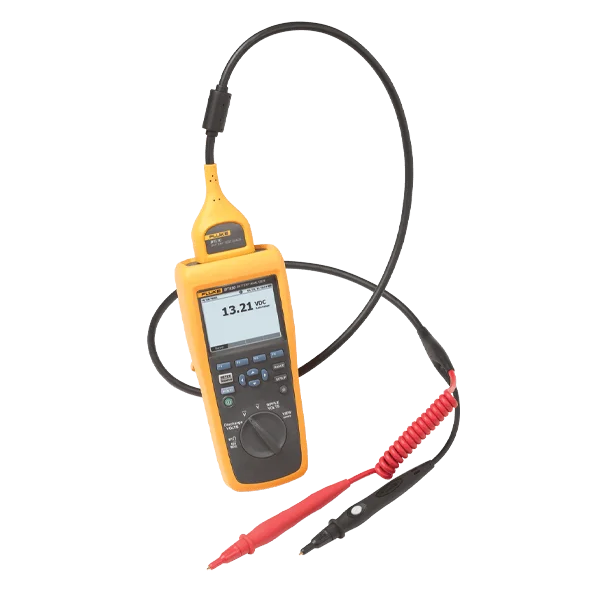

The Fluke BT520 from the 500 series battery analyzers is a comprehensive tool for checking the health and performance of stationary batteries.
This device, equipped with smart probes, measures voltage, current, internal resistance, and ripple voltage, enabling precise analysis of charging and discharging conditions.
The automatic data logging and sequential measurement mode ensure fast and error-free operation, and the intuitive user interface makes working with the device easy.
The BT520 is an ideal choice for professionals and engineers who require precise tools for the maintenance and prevention of battery failures.
🔹 Key Features of Fluke BT520
-
DC and AC voltage measurement up to 600 volts
-
DC and AC current measurement
-
Internal resistance and connection resistance determination
-
Ripple voltage and frequency recording for charging quality analysis
-
Automatic and manual sequential measurement mode
-
Visual user interface and large LCD display
-
Smart probes with data storage capability
🔹 Technical Specifications of Fluke BT520
| Feature | Value |
|---|---|
| DC Voltage Range | 6 to 600 volts |
| AC Voltage Range | Up to 600 volts (with 800 Hz filter) |
| DC/AC Current Range | 0 to 20 amps |
| Internal Resistance Range | 3 milliohm to 3000 milliohm |
| Ripple Voltage Range | 0 to 6000 millivolts |
| Frequency Range | Up to 500 Hz |
| Temperature Range | -30 to 100 degrees Celsius |
| Dimensions (L × W × H) | 22 × 10.3 × 5.8 cm |
| Weight | 850 grams |
| Interface | USB mini |
| Warranty | 3 years |
❓ Frequently Asked Questions (FAQ)
Q: Is the BT520 suitable for testing UPS?
A: Yes, this device is designed for assessing the health of UPS batteries.
Q: Is the internal resistance of the battery measurable?
A: Yes, from 3 milliohm to 3000 milliohm.
Q: How are the data recorded?
A: All measured values are automatically saved and can be reviewed before downloading.
Q: Is the ripple voltage also measured?
A: Yes, ripple voltage and frequency are recorded for charging quality analysis.
🔚 Conclusion
Fluke BT520 is a professional and reliable tool for the maintenance and troubleshooting of stationary batteries.
By providing accurate measurements of voltage, current, internal resistance, and ripple voltage, this device ensures optimal performance for energy-sensitive systems and is an ideal choice for engineers and technicians.
📎 Official Datasheet Link
👉 Download the datasheet Fluke BT520 (PDF)
