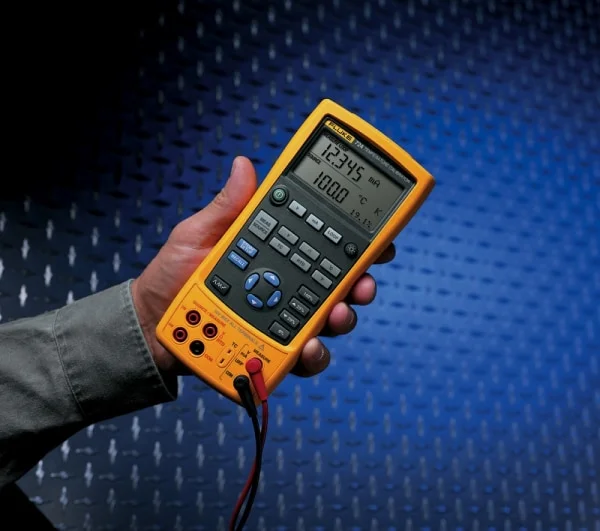

The Fluke 724/APAC/EMEA calibrator, with regional versions APAC and EMEA, is designed for testing and calibrating temperature sensors. This device can simulate and measure various thermocouples (J, K, T, E, R, S, B, N) and RTDs (Pt100, Pt385, Ni120), providing precise and stable results.
The Fluke 724 features a simple user interface, a large LCD display with backlight for quick temperature readings. The Automatic Cold Junction Compensation (Auto CJC) enhances measurement accuracy under variable environmental conditions. This device is highly suitable for applications in petrochemical industries, power plants, production lines, and calibration laboratories.
🔹 Key Features of Fluke 724/APAC/EMEA
-
Measurement and simulation of various thermocouples and RTDs
-
Support for 8 types of thermocouples and several standard RTD types
-
Automatic Cold Junction Compensation (Auto CJC)
-
Display temperature in °C and °F units
-
LCD display with backlight
-
Fast and stable performance in industrial environments
-
Robust and lightweight design suitable for field use
-
Transmitter power supply with internal Loop Power
🔹 Technical Specifications of Fluke 724/APAC/EMEA
| Feature | Value |
|---|---|
| Supported Sensor Types | Thermocouple (J, K, T, E, R, S, B, N) and RTD (Pt100, Pt385, Ni120) |
| Measurement Temperature Range | -200°C to +1820°C (depending on sensor type) |
| Measurement Accuracy | ±0.015% of the reading |
| Display Units | °C / °F |
| Cold Junction Compensation | Automatic (Auto CJC) |
| Power Supply | 9V battery or external adapter |
| Loop Power | 24V DC internal |
| Display | LCD with backlight |
| Dimensions | 160 × 85 × 45 mm |
| Weight | Approximately 450 grams |
| Operating Temperature | 0 to 50°C |
❓ Frequently Asked Questions (FAQ)
1. What is the difference between the APAC and EMEA versions?
The main difference lies in the measurement units and regional standards; the device's functionality is the same.
2. Can the Fluke 724 simulate both RTD and thermocouple?
Yes, this device is designed to measure and simulate both types of sensors.
3. Can it be used to power transmitters?
Yes, the Fluke 724 has internal 24V Loop Power for directly powering transmitters.
4. Is it suitable for industrial and laboratory environments?
Yes, the robust housing, lightweight design, and high accuracy make this device ideal for industrial and laboratory applications.
🔚 Conclusion
The temperature Fluke 724/APAC/EMEA calibrator is a precise and reliable tool for calibrating RTDs and thermocouples across various industries. With its automatic cold junction compensation, robust design, and high accuracy, this device is a professional choice for instrumentation engineers and calibration technicians.
