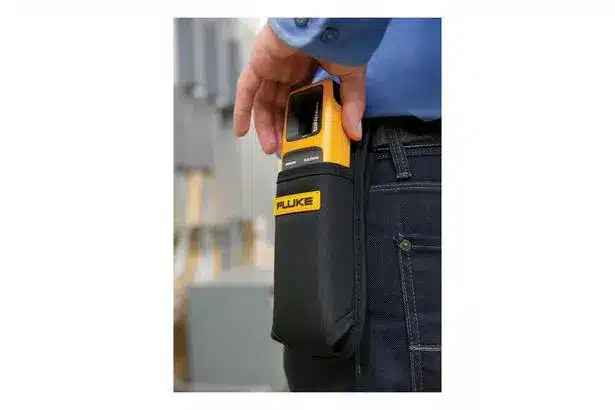

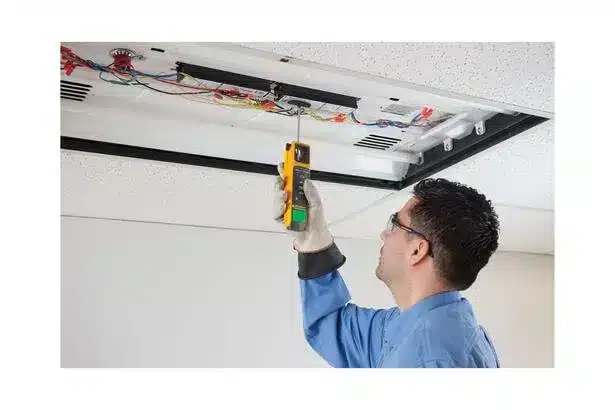

The Fluke 1000FLT is designed to check common faults in fluorescent lamps without the need to remove the lamp from its fixture. Its functions include:
-
Lamp Test: Check the lamp's health without removing it
-

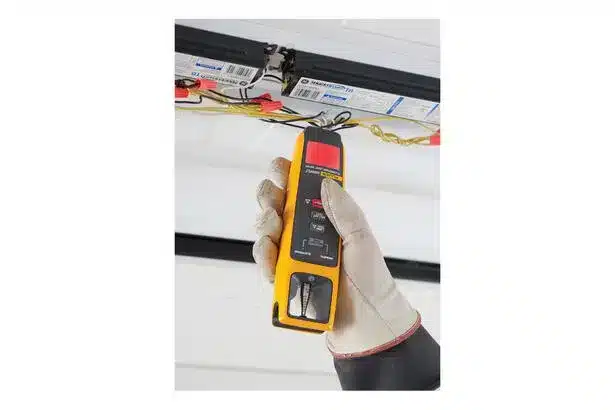

Ballast Test: Detect proper ballast operation
-
Non-contact Voltage (NCV): Identify the presence of voltage in the circuit
-
Pin Continuity Test: Check the connection of the lamp leads
-
Ballast Type Detection: Differentiate between electronic and magnetic ballast without opening the device
All these tests are completed in less than 30 seconds, and the results are indicated both by indicator lights and an audible alarm. The device is resistant to falls from heights of up to 2 meters and operates with AA batteries.
🔹 Key Features of Fluke 1000FLT
-
Perform 5 practical tests in one tool
-
Examine the lamp without separating it
-
Detect ballast type without opening the casing
-
Non-contact voltage sensor (NCV)
-
Test lamp pin continuity
-
Audible alarm with light indicator
-
Impact resistant up to 2 meters
-
Powered by AA batteries with ~40 hours of working life
🔹 Technical Specifications of Fluke 1000FLT
| Feature | Value / Range |
|---|---|
| Peak lamp test voltage | 3000 volts peak |
| Ballast test frequency | 20 kilohertz |
| Ballast type test | Up to distance ≤ 3 meters |
| Pin continuity test | < 1 kilo ohm |
| NCV voltage range | 85 to 400 volts AC (45 to 67 hertz) |
| Operating temperature | –10 to +50 ℃ |
| Relative humidity | Up to 85% |
| Safety rating | Based on IEC 61010-1 |
| Dimensions | 21.5 × 3.0 × 6.5 cm |
| Weight | Approximately 0.37 kilograms |
| Battery | 4 replaceable AA batteries |
| Auto power off | After 20 minutes of inactivity |
❓ Frequently Asked Questions (FAQ)
Is the 1000FLT suitable for LED lamps?
No, this device is designed specifically for fluorescent lamps and does not provide expected results for LED.
Do I need to remove the lamp from its place?
No, one of its advantages is that the lamp test is performed without separating it.
What happens if the ballast is of the magnetic type?
The device detects the ballast type and can indicate whether it is magnetic or electronic.
What happens if the device falls?
The design's resistance to falls from a height of up to 2 meters ensures it will not sustain serious damage.
🔚 Conclusion
If you're looking for a multifunctional tool to check fluorescent lighting systems, the Fluke 1000FLT is an excellent choice. With its rapid test combination, high durability, and full functionality, it holds a special place in any lighting technician's toolbox.
